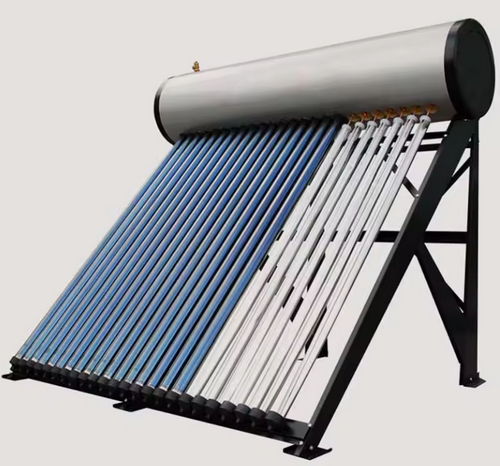

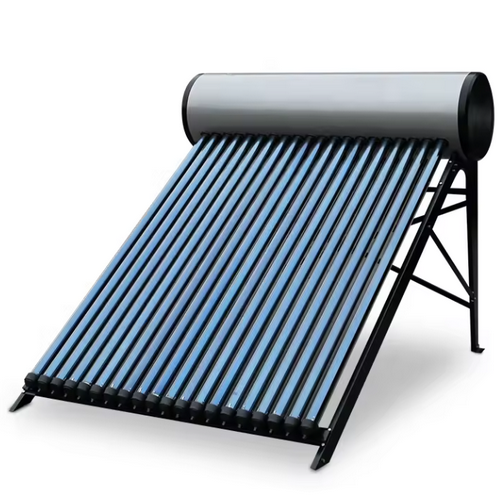

Compact pressure solar water heater can be connected with city water directly. It can endure the high pressure from city water up to 6 bars. PT valve is used for the compact pressure solar water heater in case of damage from over-heating and over-pressure. The out tank can be made of galvanized steel or stainless steel while the frame support can be made of galvanized steel, stainless steel or aluminum alloy, etc.
High water pressure
Safe and corrosion resistant
Durable compared to low-pressure systems
No moving parts, thus no maintenance
Food grade stainless steel inner tank
Galvanized steel outer tank
Available in 100L, 150L, 200L, 300L water capacity
Custom options according to your needs
Wide Applications
Compact pressure solar water heater is installed in various properties and buildings including
Homes
Swimming Pools
Community Centers
Hotels
Restaurants
Hospitals
Nursing homes
Dairy plants
Industry, etc.

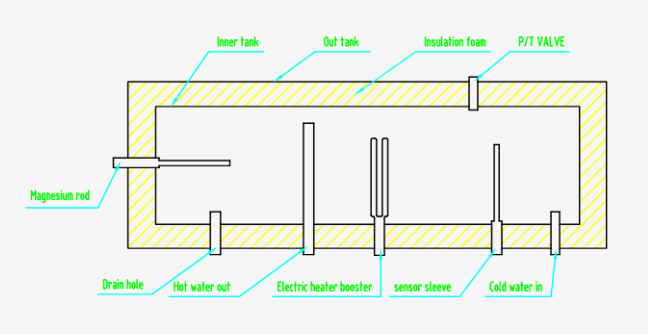

The Water Tank Structure of Compact Pressure Solar Water Heater
The water tank of compact pressure solar water heater (compact high pressure solar water heater) consists of inner tank, out tank, insulation foam and accessories.

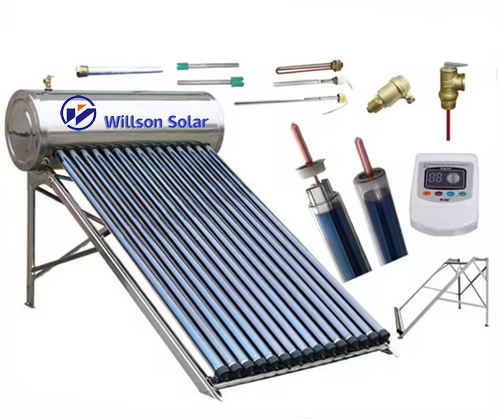

P/T valve is included with water tank as standard package. It is important accessories to prevent damage when the overheating or over pressure happen.
Sensor sleeve is used when customer want to use controller to measure the temperature inside water tank.
Every water tank will have a check valve on cold water in. So that the water will not flow out when the city water pipe is stopped service.
Electric heater booster is an option device for raining days. So the user can still use the hot water when there is no sunshine available. You do not need to install a separate water heater.
The hot water will always on top of water tank due to the lower density of hot water. Willson solar has a hot water pipe inside of tank to get hot water always from top of water tank.
Magnesium bar is also a standard package of compact pressure solar water heater. It can protect the water tank effectively from corrosion due to hard water. Willson design the magnesium bar on the side of water tank for easy replace. And when you replace it from the side, you do not need to drain back all the water during replacement.

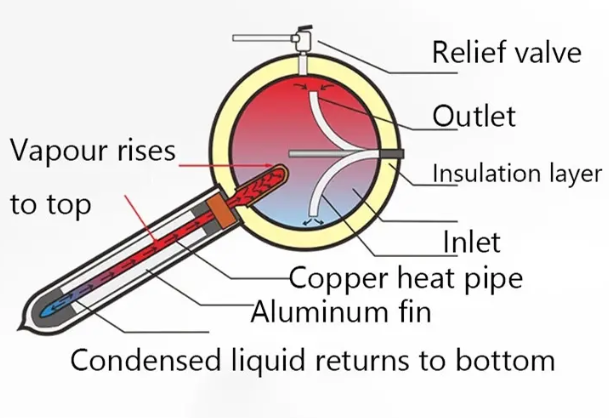

Working Principle of Compact Pressure Solar Water Heater
Compact pressure solar water heater is a highly efficient solar water heater. There is heat pipe designed inside vacuum tube for rapid heat transfer.
First step, the vacuum tube absorbs sunshine and converts it into heat energy.
Second step, the heater energy will be transferred to the heat pipe by high conductive aluminum fin which hold the heat pipe inside vacuum tube.
Third step, the heat pipe will transfer the heat energy to heat pipe sleeve which is located inside of water tank.
Finally ,the water inside of water tank will be heated by high temperature from heat pipe sleeve.
When people want to use hot water, just open the tap, the hot water will be pushed out by high pressure cold water from inlet.
How They Work
The compact pressure solar water heater is built to provide water on a grid. Its water pressure coming out from is similar for hot and cold taps. That is because the pipes have comparable diameters, as they should work. And the optimum pressure to operate a water heater is 400 KPa.
High-Pressure and Low-Pressure Differences
Before determining, which is ideal for your needs, it is essential to understand their primary structures. Here, we’ll look at some specifics.
High pressure
The water in the tank is highly pressurized. It has the same pressure as typical water.
Powerful compared to low-pressure models.
Works effectively with installed water pumps
Usable with different storage tanks
Low-Pressure
The water pressure in the tank is low. And a similar gravity to water.
Installed in high level
Used a low-pressure head
