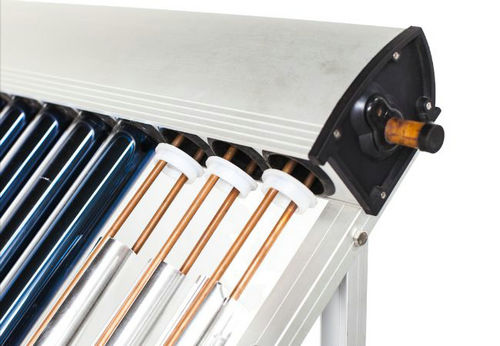

U Pipe Solar Collector

MSRP:$1
Was:$1
Now: $1
  • Fast Ground Shipping

  • Free Exchanges

  • Safe Payments

  • Top Selection

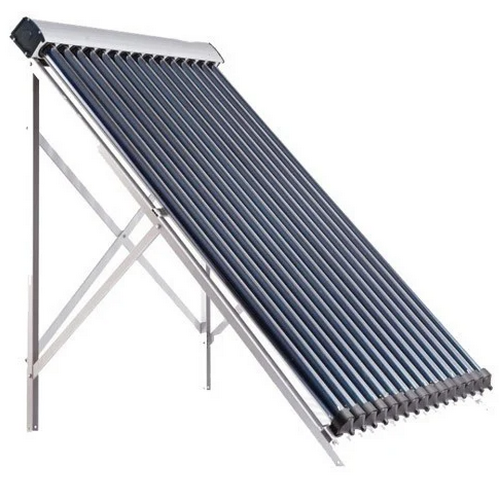

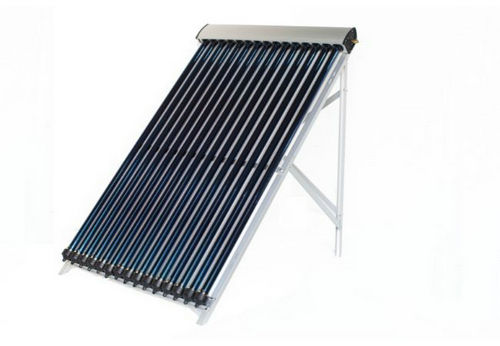

U pipe solar collector is a solar energy collector appropriate for the central hot water system. It is designed to absorb solar energy and to reach the principle of heating water.

Lower maintenance cost

Low-temperature resistance under -50℃ ambient

Offers higher efficiency: 0.79 (aperture area)

Tube can be replaceable without draining solar fluid

Easy to install and maintain

Available in 8 up 20 tubes model

Can be combined with existing water devices



Wide Range of Applications

Our u pipe water collectors are design to meet the demand application for:

1)Domestic water heating. Our solar collector can be used in shower, kitchen, washing and more.

2)Old heating equipment/system retrofit

3)Room heating including radiator heating and under floor

4)Large-scale commercial water heating system. It is used for hotels, school, hospitals, apartments and so on.

U Pipe Solar Collector

The U pipe solar collector constitutes multiple parallel tubes organized in U-shape used to convert the sun’s energy for heating purposes. Usually, these tubes are made from metals such as copper with high thermal conductivity.

To enhance solar absorption, the collector is often installed on a roof or a frame with the tubes towards the sun. The fluid flows naturally thanks to the collector’s U shape without the use of pumps or additional energy creating a thermosiphon.



Advantages of U Pipe Solar Collectors

U pipe solar collectors are a preferred option for solar thermal applications due to their many benefits some of which are highlighted below:

Cost-Effective

Compared to other solar collectors these have straightforward design with fewer parts making them more affordable. Their lack of supplementary pumping systems makes their installation and maintenance costs lower and thus a decent investment.

Durability

U pipe collectors are often constructed of durable and corrosion-resistant metals like copper. This guarantees performance in the face of adverse conditions enabling dependable performance that is long-lasting.

Efficient Heat Transfer

The wide surface area of these solar collectors effectively accommodates heat transfer when exposed to solar radiation. The collector heats up uniformly along its length thanks to the U-shaped design, maximizing the absorption of energy by the fluid.

Environmentally Friendly

Since they use solar energy that is renewable, U pipe solar collectors minimize reliance on fossil fuels. As such, they help create a more eco-friendly and clean environment by lowering carbon footprint and greenhouse gas emissions.

Options for Freeze Protection

To avoid ineffectiveness in colder climates, U pipe collectors can include freeze protection features. Such mitigation can include adding anti-freeze to the working fluid or adopting a drain-back system that drains the fluid when unused.

Natural Circulation

U pipe collectors work without requiring extra pumps infrastructure or energy input instead utilizing thermos phoning. The heated fluid continuously flows within the U-shaped construction simplifying the process and demanding less maintenance.

Scalability

It is possible to customize the heating demands of your U pipe solar collectors by scaling up or down. The system’s overall capacity can be increased by adding more collectors making it more flexible to meet different needs.

Versatile

These solar collectors can be put into a wide range of uses and are adaptable for both domestic and commercial application.  They can be used for industrial processes needing moderate-temperature heat as well as domestic heating needs.

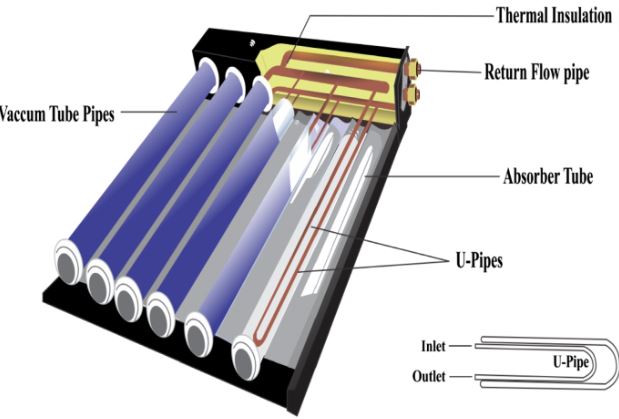

Key Components of the U Pipe Solar Collector

The components of U-pipe solar collector effectively absorb solar energy before transferring the energy to a fluid in form of heat. The heat is then supplied for various heating applications with the effectiveness and performance influenced by the component design and quality.

Collector Absorber

Their design is such that they absorb optimal solar energy. Usually, they have significant sunlight energy absorption capability.

Copper or aluminum are commonly used, and maximum surface exposure is necessary to achieve increased solar absorption.

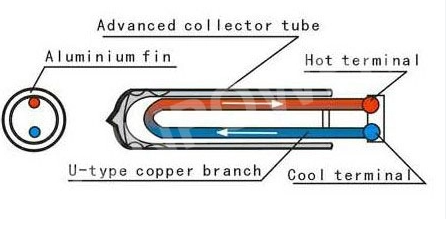

U-Shaped Tubes

Constitute the collector’s primary structure with U-shaped copper tubes or other high thermally conductivity material. The U-shape facilitates effective heat transfer and the fluid’s natural circulation with connection to inlet and output pipes.

Heat Transfer Fluid

This fluid, usually water or water-glycol combination, transfers captured heat from the collector to the area of application. In order to absorb the heat, the fluid moves through the U-shaped tubes initiating direct contact with the absorber plate.

Insulation

To reduce heat escape to the surrounding, insulation is crucial in a U-pipe solar collector utilizing insulating materials like foam or fiberglass. The absorber plate and collector are insulated improving overall collector efficiency and helping maintain temperature of the heat transfer fluid.

Glazing

It is the transparent cover shielding the absorber plate and tubes and allowing passage of solar radiation. Usually, tempered glass or clear plastic is used as glazing material which also offers protection against the elements. Glazing also aids in lowering heat loss through convection and radiation.

Frame

The frame gives the U pipe solar collector structural support and stability built of tough materials like galvanized steel or aluminum. The frame makes installation of the collector on a roof or other mounting structure easier safely securing the assembly.

Inlet and Outlet Pipes

These pipes allow for the flow of heat transfer fluid in the collector and are attached to the U-shaped tubes. These pipelines enable the flow of fluid into the collector, where it is heated by the absorber plate before transfer.

Working Principle of the U Pipe Solar Collector

U pipe solar collectors use natural convection for circulation and don’t need pumps or external energy sources. They are thus economical and energy-efficient for solar thermal applications because of their simplicity.

The basic idea behind a U-pipe solar collector is the gradual transformation of solar radiation into usable heat summarized thus:

Absorption of Solar Energy

This collector is made to absorb as much solar energy as possible by placing the collector with its back towards the sun. Material with high sunlight absorption capabilities is used for the collector’s surface converting absorbed sunlight into heat.

Heat Absorption

The collector’s heated surface is in direct contact with the heat transfer fluid flowing through the tubes. The heat transfer fluid is usually water or a mixture of water with glycol and captures absorbed heat via thermal conduction. The fluid’s temperature is raised by the heat, making it capable of carrying thermal energy.

Natural Circulation

The collector’s U-shaped design is essential to the operating concept allowing the heated fluid to rise thanks to thermosiphon action. It gathers buoyancy as it rises moving to the collector’s top where it makes a U-turn beginning descent via the opposite leg. The natural circulation caused by the temperature differential initiates the change in direction.

Return to the Collector

Remember, the downward flow results in a loss of heat to the surroundings. The cooled fluid is directed back to the collector’s base, where the cycle is repeated. Continuously moving through the collector, the fluid picks up heat, rises, turns around, and releases it.

Heat Transfer

Now, the heated fluid is thereafter sent to a heat exchanger or storage tank, where it is transported to the intended application. Domestic water heating systems employ the fluid in heating applications such as water heating and space heating.

Design Specifications

Depending on the particular application and requirements, a U pipe solar collector’s design requirement can change. Here are some typical design requirements to consider:

Material for the Absorber Plate

Typically, a material with high heat conductivity and superior solar absorption capabilities is used for the absorber plate. Aluminum and copper find common use because of how well they conduct heat.

Frame

To give structural support and endure environmental factors, the collector requires a robust frame. The frame should be corrosion-resistant and capable of supporting the weight of the collection components, such as aluminum or galvanized steel.

Freeze Protection

Need to protect the collector from harm in cold climates warranties use of freeze protection procedures. A drain-back system drains the fluid from the collector when not in use, while insulation is also helpful. Using an anti-freeze solution in the heat transfer fluid also works.
